Our JDSB series pumps can be exchanged with mission sandmaster pumps

время:2019-05-17


1. Usage and Application Range

JDSB series centrifugal sand pump includes virtually all of the features of the JDSB series pumps.JDSB series pumps are more compact in design and can be adapted for hydraulic motor drive.These features make .JDSB series pump ideal for use in applications such as oilfield frac trucks as well as blending and pump charging for water well drilling applications.

All parts for these pumps are identical to the JDSB series pump except for the frame and shaft.The frame and shaft have been shortened 4" to reduce the length of the pump.When space is a premium and prime mover options are limited, the JDSB series pump is the pump of choice.

There are 8 models for choosing,JDSB3×2×13,JDSB4×3×13,

JDSB5×4×14,JDSB6×5×11,JDSB6×5×14,JDSB8×6×11,JDSB8×6×14,JDSB10×8×14.

2. Pump Features

The Series Centrifugal Sand Pump has these features:

(1) Open impeller,apply to transport high viscosity drilling liquid.

(2) Combination seal for a long service life.

(3) Use universal bearing houses and bearings,convenient to maintain and cut the costs.

(4) The major parts are made from antiwear nodular iron,and long service life.

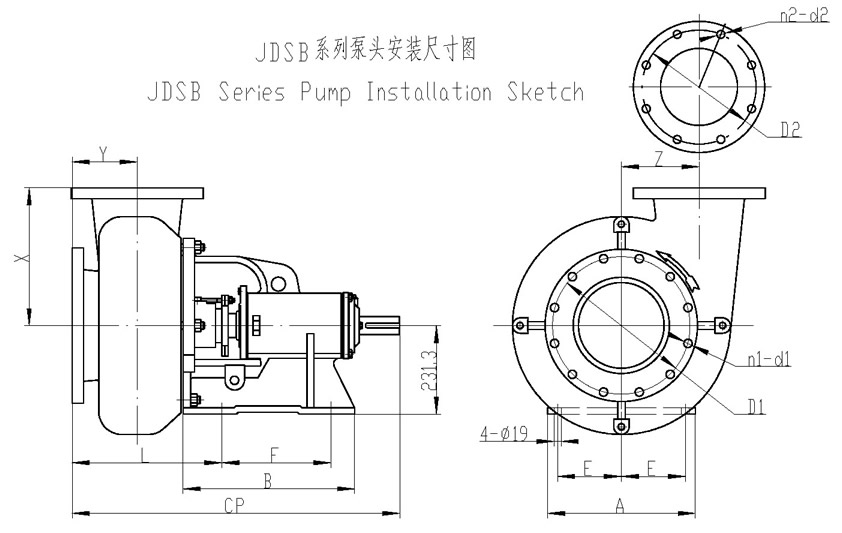

3. Dimensions of pump fluid end


Pump   model

Dimensions   (mm)

D1

n1-d1

D2

n2-d2

A

B

E

F

L

X

Y

Z

CP

Metric

Inch

Metric

Inch

Metric

Inch

Metric

Inch

JDSB10×8×14

350

361.6

12-23

12-25

295

298

8-22

8-22.2

387

449

166.7

285.75

391.5

360.36

169.86

203.2

856.8

JDSB8×6×14

295

298

8-22

8-22.2

240

241.3

8-22

8-22.2

387

449

166.7

285.75

380.1

355.6

158.75

212.73

845.5

JDSB8×6×11

295

298

8-22

8-22.2

240

241.3

8-22

8-22.2

387

449

166.7

285.75

380.1

355.6

158.75

212.73

845.5

JDSB6×5×14

240

241.3

8-22

8-22.2

210

215.9

8-22

8-22.2

387

449

166.7

285.75

348.65

279.4

146.05

152.45

814

JDSB6×5×11

240

241.3

8-22

8-22.2

210

215.9

8-22

8-22.2

387

449

166.7

285.75

347.15

279.4

146.05

152.45

812.5

JDSB5×4×14

210

215.9

8-22

8-22.2

180

190.5

8-19

8-19

387

449

166.7

285.75

316.1

279.4

129.64

155.56

781.5

JDSB4×3×13

180

190.5

8-19

8-19

160

152.4

4-19

4-19

387

449

166.7

285.75

281.1

260.35

107.95

171.45

746.5

JDSB3×2×13

160

152.4

4-19

4-19

125

120

4-19

4-19

387

449

166.7

285.75

263.35

260.35

95.25

177.8

728.7
